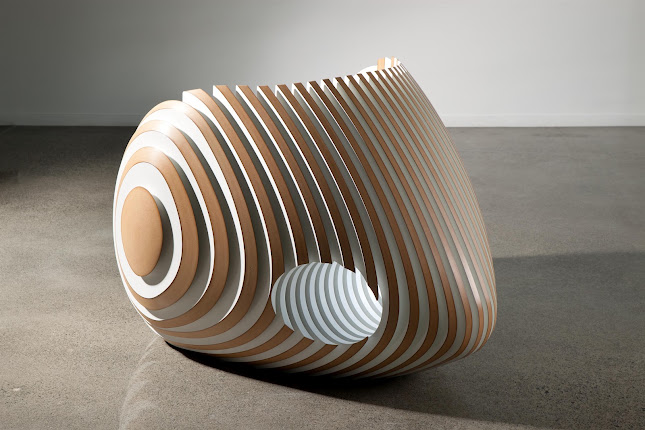

1 Photo by Sam McCabe, using a remote flash inside the cylinder: stunning

  1. 1 Photo by Sam McCabe, using a remote flash inside the cylinder: stunning
  2. 2 This was the original 2008 competition in the U.S. at the Cincinnati Contemporary Arts Centre.
  3. 3 The concept for Beehive chair by with the SketchUp style 'Pencil Edges With Whiteout Border' (Created by Mark Paschke)
  4. 4 I drew a guitar pick and an egg in AutoCAD polylines then made them 3D solids in SketchUp Pro. The seat form is a pick and the hollow seat intersects with the wide portion of the egg. To give appropriate ergonomics, I studied the Eames chair.
  5. 5 The chair won the Formica Formations design competition and was built by David Trubridge and his Hastings team in time for the award ceremony.
  6. 6 I made a series of 2D vertical planes at panel thickness and intersected them with the model.
  7. 7 This left me all the panels for manufacture. But SketchUp models in meshes, and we needed nurbs modeling for the 5-axis CNC machine. Using the parent AutoCAD polylines, I could give the modelers at David Trubridge the profile & offsets in DWG, and they recreated it and generated cutting sheets using Rhino.
  8. 8 The components were polished with beeswax and carefully assembled with one craftsman working over a holiday weekend to meet the deadline.
  9. 9 This photo of the finished chair (by Sam McCabe) took my breath away.
  10. 10 After being designed in Queenstown, built in Hastings and shipped to Auckland for the awards, this was my first sitting in the sculpture. (Photo courtesy of The Whole Nine Yards)
